Increase machine efficiency and productivity.


AutoWarp 4th Generation

Precision let-off control and optional machine control for Karl Mayer and Liba warp knitting machines.

The AutoWarp 4 offers built-in capability to control the entire knitting machine. Bring older unserviceable machines back into production with modern supportable controllers and increased RPM.

EASY INSTALLATION



System features & capabilities



  • Replaces EBA/EBC let-off computer and machine control in Karl Mayer and Liba tricot/raschel machines

  • Precise runners (0.1%) with follow arm feedback

  • Touch screen operator with real-time runner position display for quality assurance

Specifications

Specifications subject to change without notice.

Input Power

115-220VAC 50/60 Hz 500 watts

Stop Motion

Momentary dry contact NO, COM, NC

Detection System

Magnetic pickup on beams. Encoder on main shaft.

Operator Interface

7" (17cm) Diagonal Full Color Touch Screen

Download brochures

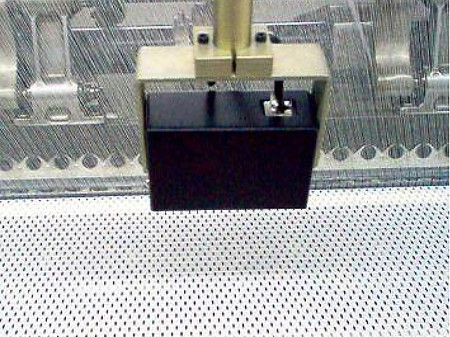

ASM Max 10 Traversing Scanner

Improved defect detection coverage for the complete range of
warp-knitted fabrics, including weft-insertion and automotive upholstery.

The ASM Max 10 eliminates buss bars and brushes, avoiding fabric contamination. Menu-driven operator interface via handheld programmer.

System features & capabilities



  •  Hardened steel track carriage

  •  Pre-assembled rail for 130”-240” needle width capacity

  •  Real-time communication from the detector to the controller

  •  Signal meter on detector for visual inspection indication

  •  Visible illumination of fabric

  •  Accommodates weft-insertion fabrics

  •  Automatic or manual detection threshold setting

Specifications

Specifications subject to change without notice.

Input Power

115-220VAC 50/60 Hz 500 watts

Stop Motion

Momentary dry contact NO, COM, NC

Detection System

Incandescent and LED lighting

Operator Interface

Membrane keypad

Download brochure


CEPA
(Computer Enhanced Process Analyzer)

Real-time runner display and control plus full complement of rack & production counters and data gathering capabilities.

The CEPA delivers real-time runner length on up to 4 warp positions. Should the runner be out of tolerance, CEPA will alarm or stop the machine. For earlier series gearbox let-off systems, CEPA adjusts the gearboxes via servo motor connection to maintain runners within tight tolerances.

System features & capabilities

  • Menu-driven keyboard programming

  • Update runner value every 15-30 seconds

  • Programmable runner tolerance with (3) outputs: servo loop, alarm, shut-down

  • Expedites style changes

  • Select racks, picks and M-pick counters

  • Programmable shift, order, roll, and totalizing counters

  • Host PC communication

Specifications

Specifications subject to change without notice.

Input Power

115-220VAC 50/60 Hz 500 watts

Stop Motion

Momentary dry contact NO, COM, NC

Detection System

Magnetic pickup on beams and main shaft.

Operator Interface

2" x 20" LCD

Download brochures


Scannair 20MP

Effective yarn-break detection on Raschel, Tricot, Weft-Insertion, and Lace Machines

The Scannair 20MP laser meets the demanding yarn break detection needs of high-speed warp knit machines. Increase machine operating efficiency while enabling multiple machine assignments.

System features & capabilities

  • Typical 1-8 channel application; up to 20 channel capacity

  • Automatic Gain Control (AGC) for each channel

  • Laser transmitter/receiver system

  • Sensitivity setting via yarn pass-through laser light

  • Available mounting brackets for machine application

  • Optional motor/fan air system

  • Effective detection 15-2000 denier yarns

  • Run/bypass switch with 5-minute timeout

  • Optional synchronized laser channel for knitting bar or weave shed

  • Needle widths 90”, 130”, 170”, 180”, 210”, 240”

Specifications

Specifications subject to change without notice.

Input Power

115-220VAC 50/60 Hz 500 watts

Stop Motion

Momentary dry contact NU, COM, NC

Run/reset signal

24-240 VAC/VDC

Detection System

Laser class II

Operator Interface

Handheld terminal

Download brochures
